Introduction

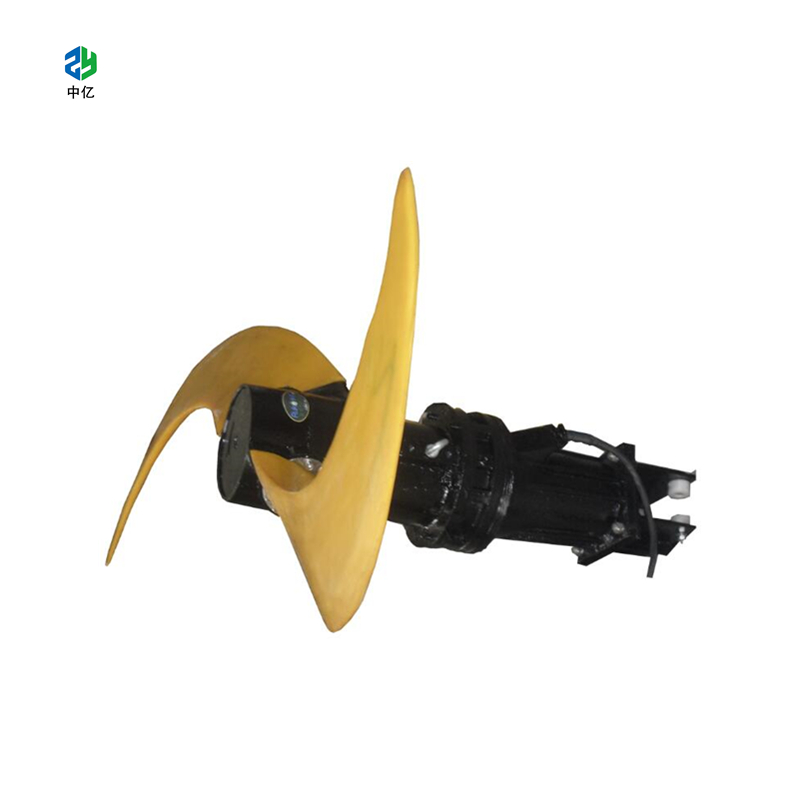

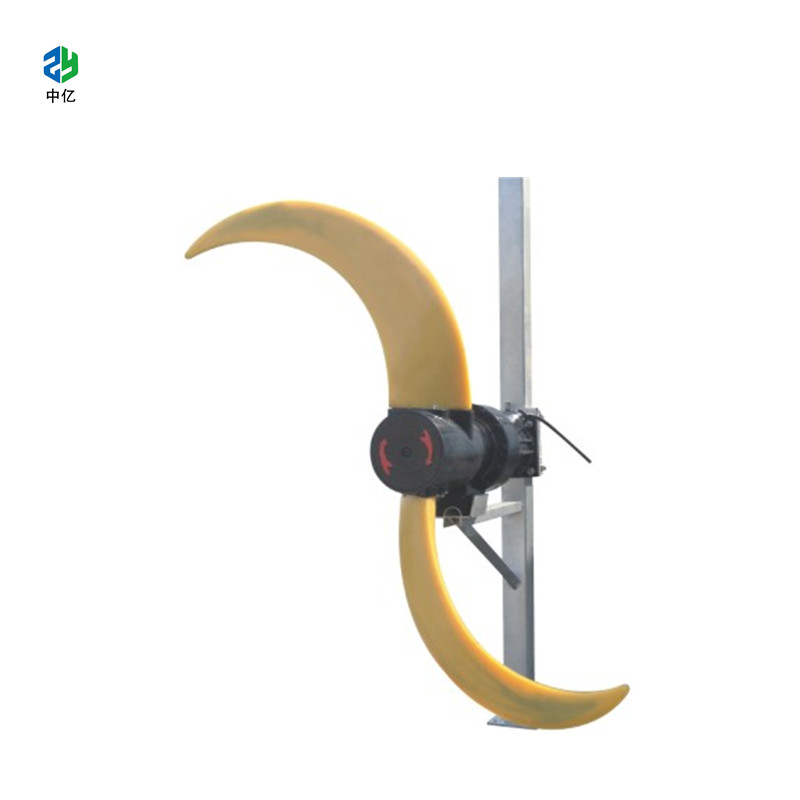

QDT underwater pusher, in the water treatment process, is widely used in oxidation ditch pusher, various biochemical tank mixing, but also can be used for river antifreeze, landscape water circulation.The low-speed pusher consists of submersible motor, deceleration device, impeller and installation system.It is characterized by small supporting power (1.5~7.5Kw), low speed (36~135r/min), large blade diameter (1000~2500mm), low speed rotation, large volume flow field, wide service range.

Applications

Stirring to create a flow for the month, to improve water quality, increase oxygen content in water, effectively prevent the deposition of suspended solids
Conditions of Use
In order to ensure the normal to make diving mixer, please select the correct working environment and operating mode.
Maximum medium temperature does not exceed 40 degrees; and PH range: 5-9;
Medium density not exceeding 1150Kg / m 'diving deeper than 10m.

Mixer must be fully submerged underwater diving work, not flammable and corrosive and high temperature environments

Features

♦ Compact structure,small volume,light weight, easy operation maintenance,fast installation,long service life etc.

♦ The blade has the self-cleaning function, can prevent sundries wind,blocking

♦ Can combine with aeration system to make energy reduced greatly, greatly increase oxygen volume, effective prevent sediment.

♦ Motor winding is F grade insulation, protection grade is IP68.

♦ All fastener is stainless steel

Product  Description
