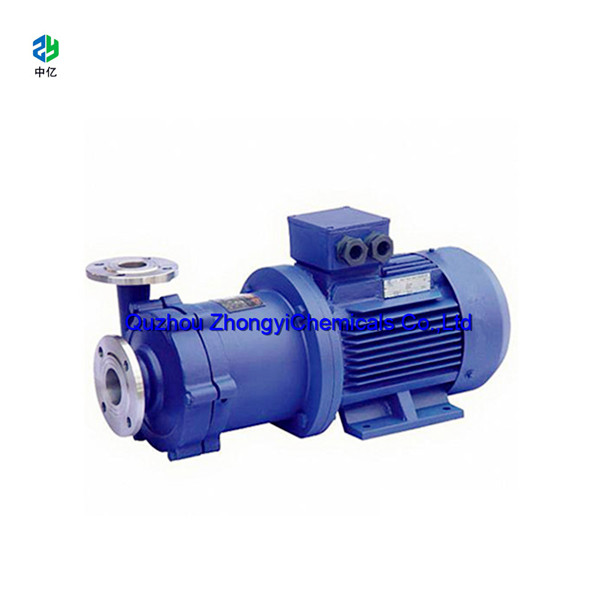

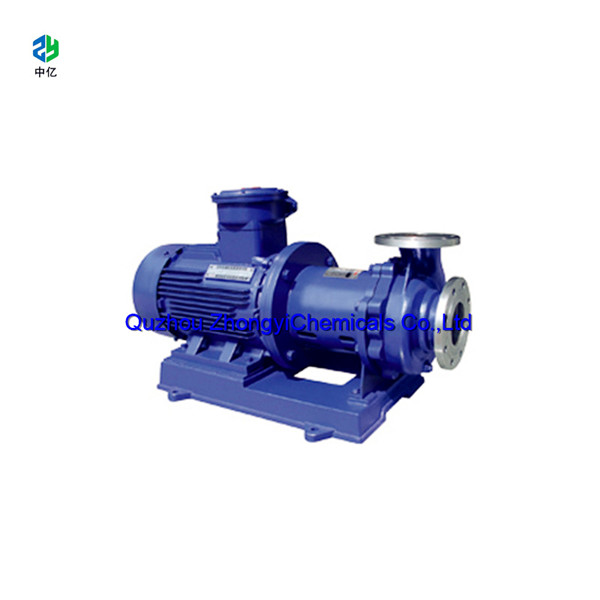

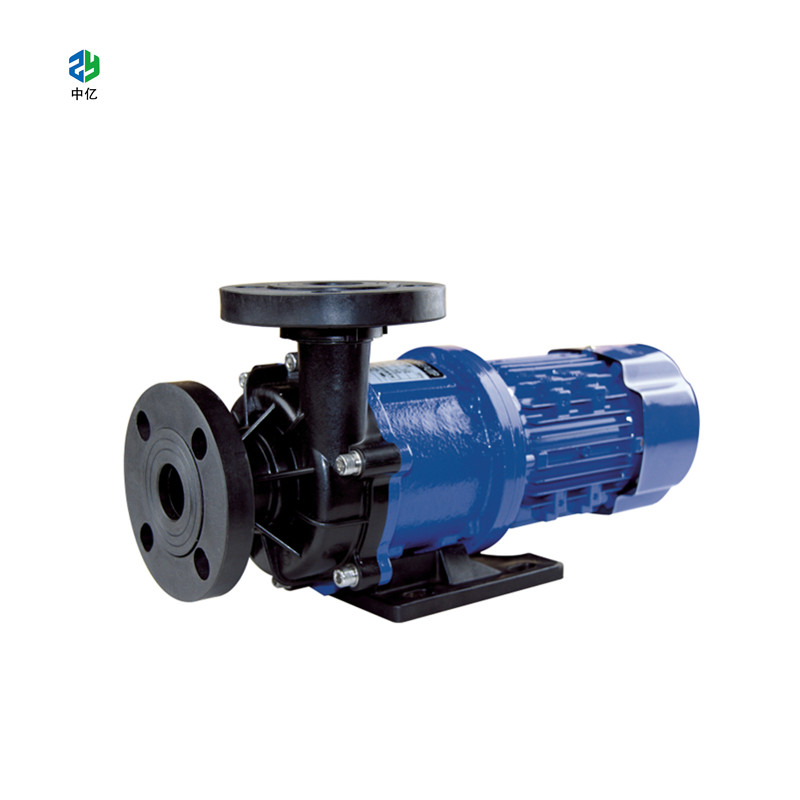

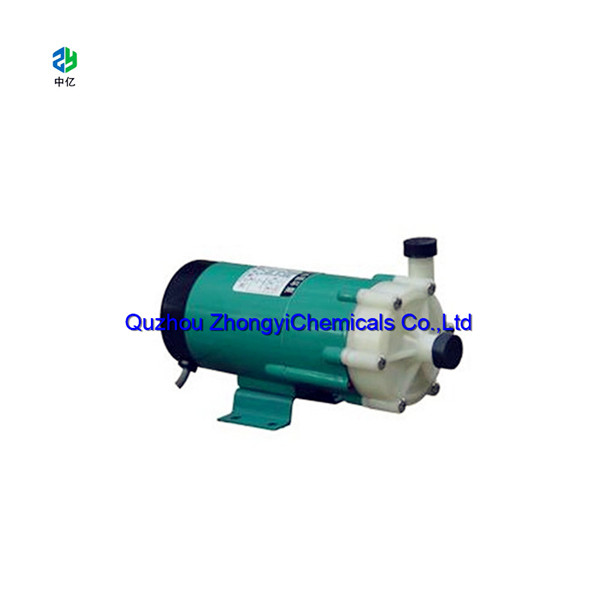

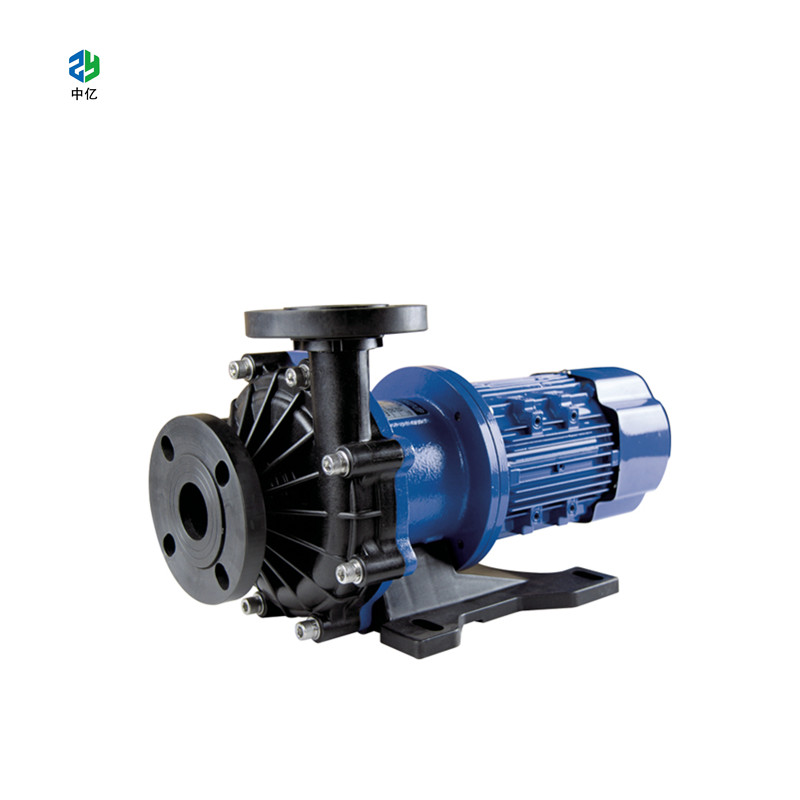

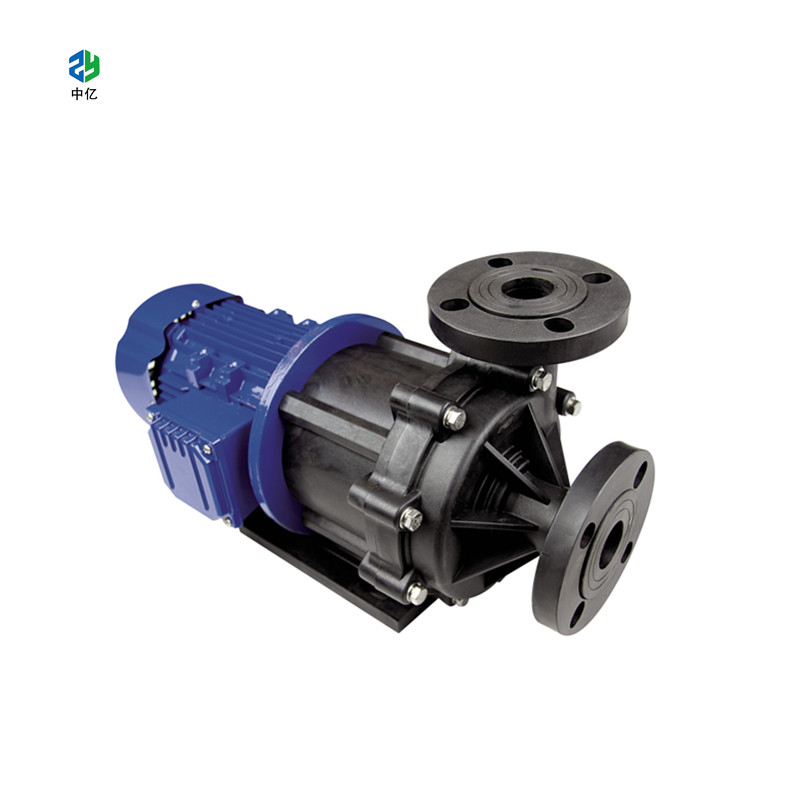

CQB-F pump PTFE Magnetic Pump/ Chemical pump/Fluorine magnetic pump
Product Overview
1. CQF 220 volt small lab using low power water pump no-leakage magnetic drive pump is manufactured by ZY is compact structure, small volume, light weight.
2. Pump is widely used in all industries works as booster pump, chemical, lab pump, circulation pump.
3. Pump is designed with 50 or 60Hz to meet requirements of clients from different countries.
4. The magnetic drive pump is generally designed for no shaft seal, completely avoids defects of pollution after corrosion caused by liquid leakage, which exists in traditional mechanical shaft seal pump, it is the optimum liquid transport pump.
Products details
| Working Principle: | Centrifugal, Magnetic coupled |
| Main applications: | Chemical, water |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Thread, Tube |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Fiber reinforced, Alumina ceramic/Fiber reinforced |
| Shaft seal type: | Static sealing |
| Maximum drive rating: | 2.2KW(3HP) |
| Maximum caliber: | 56mm(2 1/4inch) |
| Maximum discharge-side pressure: | 0.22MPa(2.2bar) |
| Maximum head: | 22m(72.2ft) |
| Flow rate range: | 2.8-380L/min(0.7-100.3US.GPM) |
Performance Show
