mechanical pipeline horizontal centrifugal pump for chemical
mechanical pipeline horizontal centrifugal pump for chemical
FSB series pump is a horizontal centrifugal pump for chemical process, compliant with ISO/ASME/ANSI, which is a teflon lining Centrifugal Pump for corrosive liquid with viscosity similar to water without solid.
Product Name | FSB ( D ) Chemical Pump |
Material | PTFE/FEP/PVDF lining |
Standard | ISO9001, ASME, ASNI |
Flow Rate | 3.5 to 60 m3/hr |
Capacity | 8 to 56m |
Voltage | 220v/380v/415V |
Design Pressure | 0.6 MPa |
Working Temperature | -20 °C to +100 °C |
Warranty | 1 year |
Pumping Liquid | Acids , Lyes , Waste water, Chlorine water, Electrolyte, Painting |

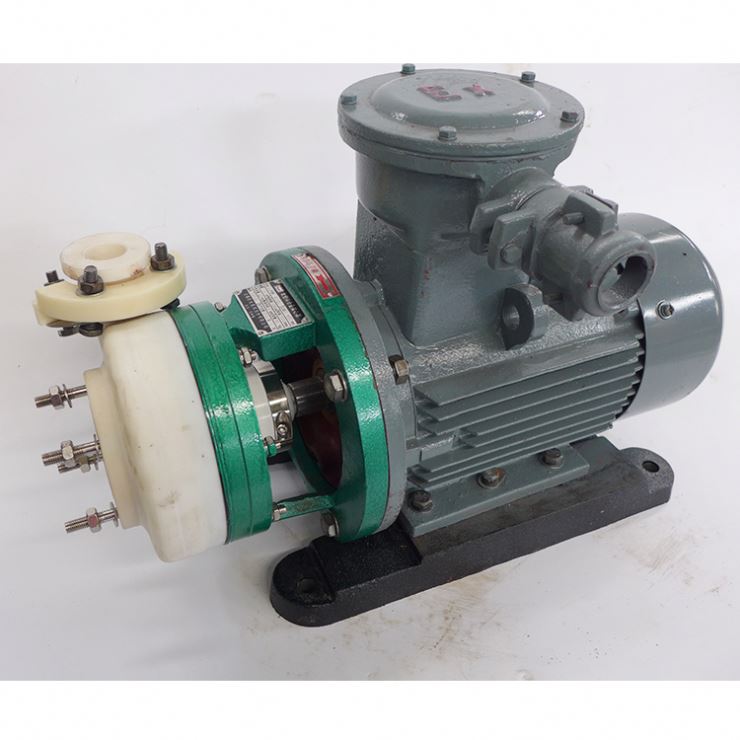

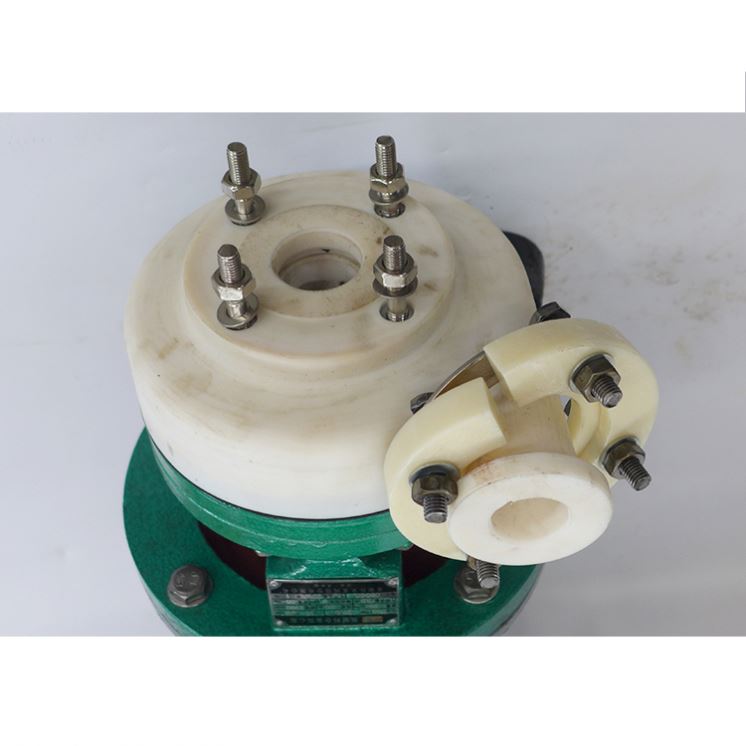

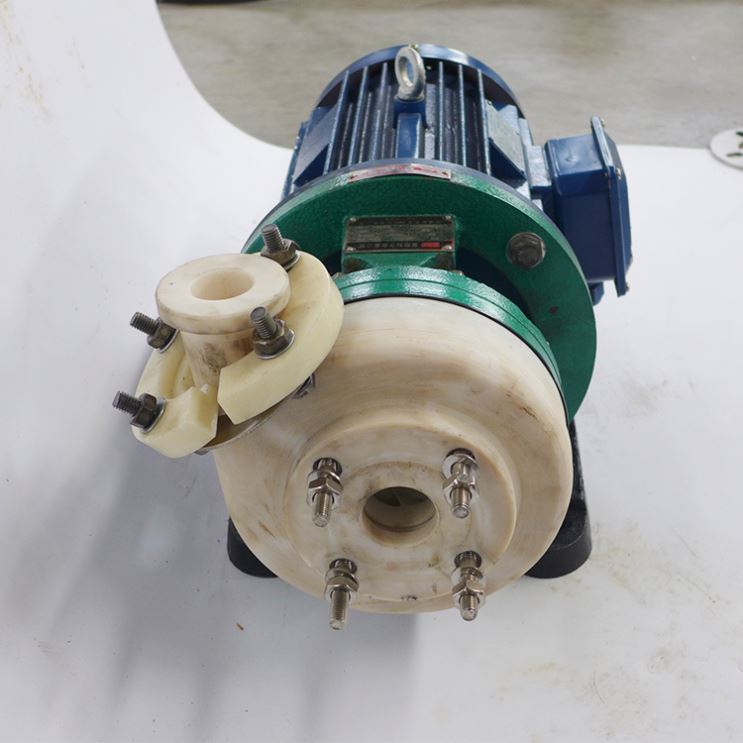

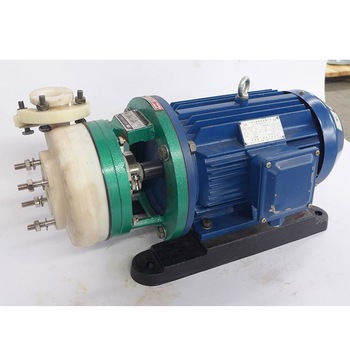

Products Show
Application
Ionic membrane caustic soda production
Acid pickling process
Painting process
Electroplating industry
Pesticide industry
Papermaking etc.
