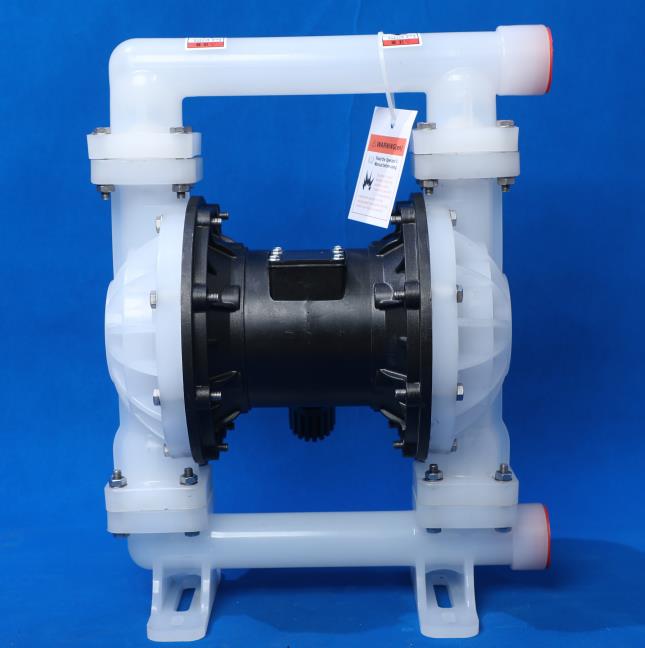

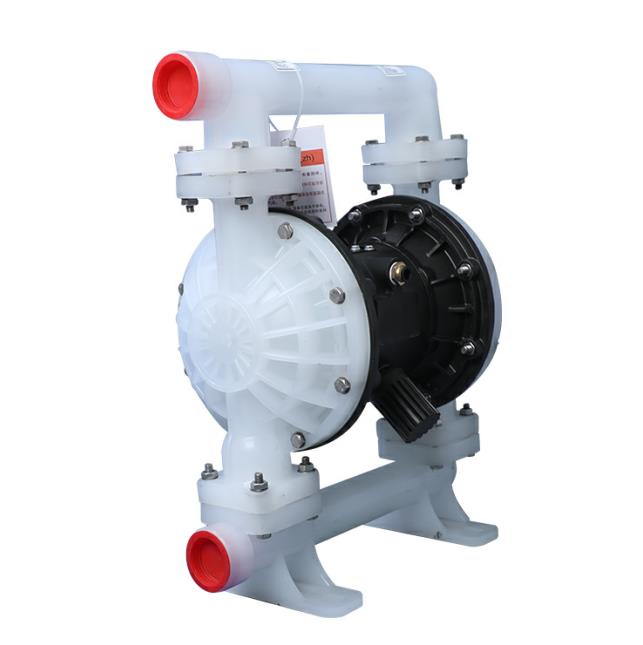

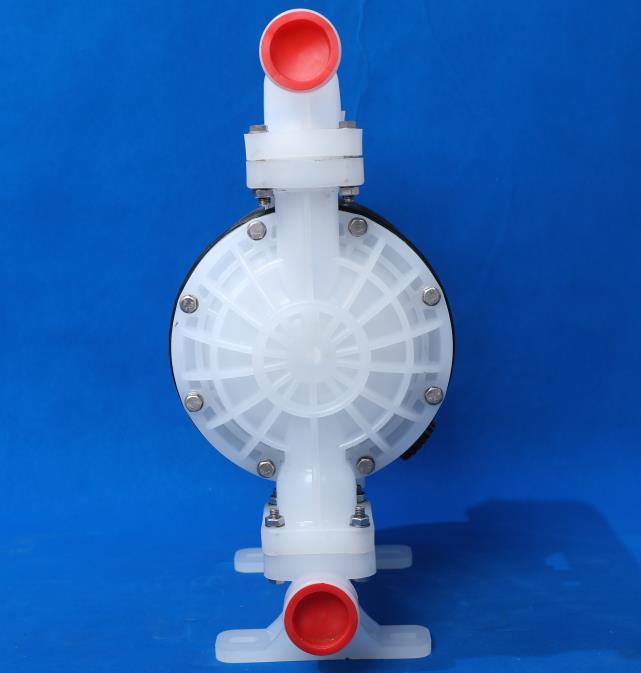

QBY series pneumatic mini diaphragm pump
QBY series pneumatic mini diaphragm pump
| Item | Double Diaphragm Pump | Valve type | Ball |
| Pump operation type | Air operated | Max.flow GPM | |
| Max.flow lpm | 57lpm | Max. operating pressure | 120 psi |
| Max.temp-pumps | 150 degree | Ball material | santoprene/Teflon/Nitrile |
| Manifold &Fluid cap material | Plastic | Check seat material | santoprene/Teflon/Nitrile |
| Centre body material | Aluminum | Max. Dia. Solids | 1/4 |
| Inlet/Outlet size | 1/2''BSPT | Self-priming dry | 5m |
| Air inlet size | 1/4''BSPT | Self-priming wet | 8m |
| Diaphragm material-pumps | santoprene/teflon/Nitrile | warranty | 1year |
Advantages:
1.Lighter weight plastic materials make pumps highly portable and less expensive.
2.Offer a multitude of elastomer options,including Teflon PTFE,to meet abrasion,temperature and chemical-compatibility requirements.
3.Meet the needs of oil,Gas&Marine Applications.
